产品名称 |

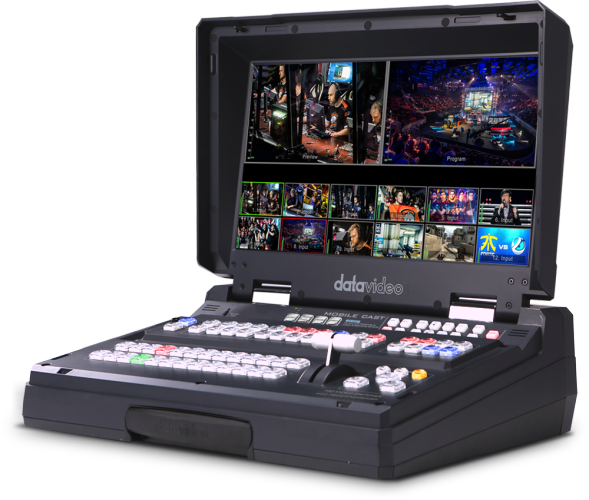

HD 12通道切换台 |
|
型号 |
HS-3200 |
|
视频标准 |
Full HD |
|
视频格式 |
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz |
|
输入格式设定 |
All 12, repeatable |
|
视频输入 |
8 x SDI
4 x HDMI |
|
计算机输入 |
4 via HDMI |
|
下变换转换器 |
1 x SDI |
|
视频输出 |
5 x SDI, 1 x HDMI assignable:
Multiview
PGM
PVW
PGM+DSK
Clean PGM
Clean PVW
Input 1-12
STILL 1
STILL 2
Flex source
3 x HDMI PGM only |
|
音频输入 |
4 x Balanced XLR |
|
音频输出 |
2 x Balanced XLR |
|
音频嵌入 |
Input 2 Channels
Output 4 Channels |
|
音频延迟 |
up to 16 frames |
|
音频同步切换 |
Yes |
|
USK |
4 |
|
DSK |
2 x DSK supporting Lumakey & Linear key (Key / Fill) |
|
画中画 |
8 (4 x Keyer / 4 x Flex Source) |
|
Logo |
2 |
|
字幕机 |
Yes, CG-200 software free download |
|
监看屏幕 |
17.3” HD TFT LED Backlit, 1920x1080 pix |
|
串流视频编码 |
H.264 / AVC, Main/High Profile Configurable Bitrate up to 10Mbps |
|
串流音频编码 |
AAC-LC
Configurable bitrate range from 32 Kbps to 384 Kbps
Sample Rate: 48 kHz, 16 bit |
|
串流协议 |
TS over TCP/UDP (Unicast & Multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
HLS
SRT |
|
串流控制 |
Web browser UI for configuration and control socket commands |
|
录制文件系统 |
FAT, exFAT, NTFS |
|
录制文件格式 |
MP4 |
|
录制设定控制 |
Web UI for system configuration and control |
|
特别功能 |
4 Chroma-Key Virtual Studio
9 Stinger transition and 4 user presets
Built-in TC-200 CG interface
Streaming encoder and recorder
12x9 matrix seamless switch |
|
尺寸 |
455 x 355 x 134 mm |
|
重量 |
17.8 Lbs (8.1 kg), Reinforced Plastic Case |
|
电源 |
DC 12V, 11A |
|
操作温度 |
0 – 40°C |
|
选配 |
TPC-700, CB-22H/23H/46/47/60/61/62 |
