产品型号

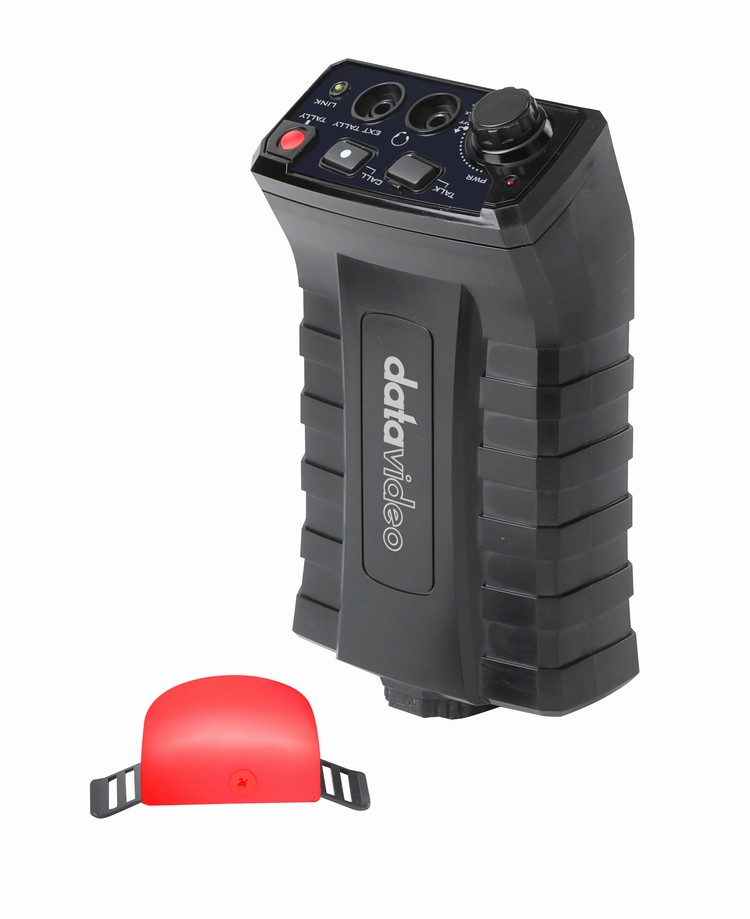

ITC-300SL

产品名称

数字导播通话子机包

通话

Call Button x 1
Talk Button x 1

耳机麦克风接口

3.5mm Stereo Jack Socket x 1
(For Headphone / Microphone combination)
Headset Impedance 24 ohm 100mW(min)
Microphone Level -45.2dB
(Tip: Mic、Ring: Phone、Sleeve: GND)

Tally输出

3.5mm Jack Socket to connect to TD-3 Tally Indicator

音量控制

VR with Multifunction Switch (Adjusts the volume of the headphones)

Tally LED

Bi-Color LED – RED indicates LIVE / GREEN Indicates CUED

Power LED

Red light

Link LED

Yellow light

Call LED

Green light – Outgoing call
Red light – Incoming call

电源

Ethernet RJ45 x 1 (11V~36V)

频率响应

300 Hz~7 KHz, < +/-3dB

总谐波失真(THD)

< 0.1% @1KHz

信号杂讯比(S/N)

>70dB

操作范围

Up to 100m between Base Station and Slave

操作温度

0°C to 40°C

储存温度

-20°C to 60°C

湿度

10% to 80% (non-condensing)

尺寸

81.2 x 142.6 x 49.6 mm

重量

230 g
